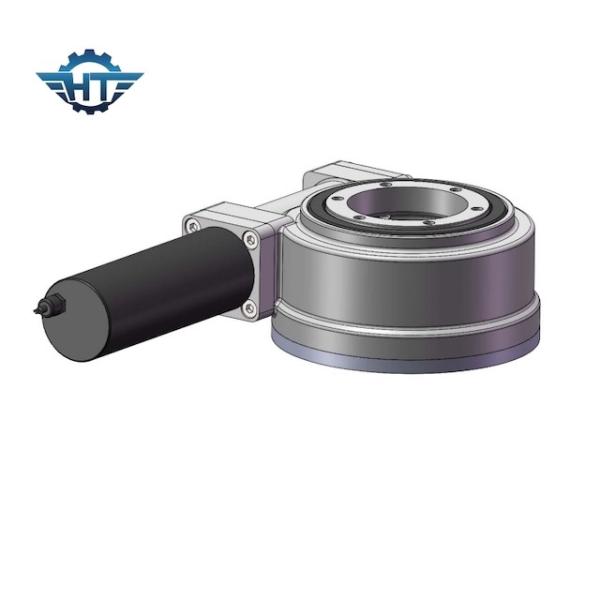

SE1 Worm Gear Slew Drive, IP66 For Inclined Single Photovoltaic
Tracking Station
SE1 Worm Gear Slew Drive Description
Tooth type: helical tooth
Bearing load: light load
Drive type: Motor drive
Diameter of rotary center: 40mm
Module: 5
Number of worm shafts: 1
Gear Ratio: 32: 1
Efficiency: 40%
Self-locking gears: YES
Weight: 6 kg
Slewing drives are widely applied in horizontal single axis
tracking system, inclined single tracking system and dual axis PV
solar tracking system, heliostat solar tower system, parabolic
trough concentrated power station, solar dish tracker and linear
fresnel thermal system, as well as marine crane, lift crane, timber
grab, mining equipment, cutting equipment, aerial working platform,
truck crane, drilling rig, turn table, automation line and so on.
Advantages
1. High backholding torque to improve the solar tracking system's
safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Performance Parameters of SE series
| SE Model Performance Parameters |
| Model | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (degree) | IP | Working Tep. (℃) | Self-locking | Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Remark: For more detailed dimensions and parameters, please refer
to our sales drawings.
Applications
In order to improve the conversion efficiency of solar cells, the
method of automatically tracking the sun is usually adopted, so
that the solar panels are facing the sun. According to the
determination, under the same environmental conditions, the power
generation of an all-round automatic tracking solar photovoltaic
power generation system is about 35% higher than that of a fixed
solar photovoltaic power generation system. Especially for systems
using monocrystalline silicon solar cell modules, due to the high
price, it is hoped to obtain as much solar radiation as possible,
and sun tracking can be considered.
There are three types of solar cell array tracking methods: flat
single-axis tracking, inclined single-axis tracking, and dual-axis
tracking. This courseware introduces single-axis tracking.
