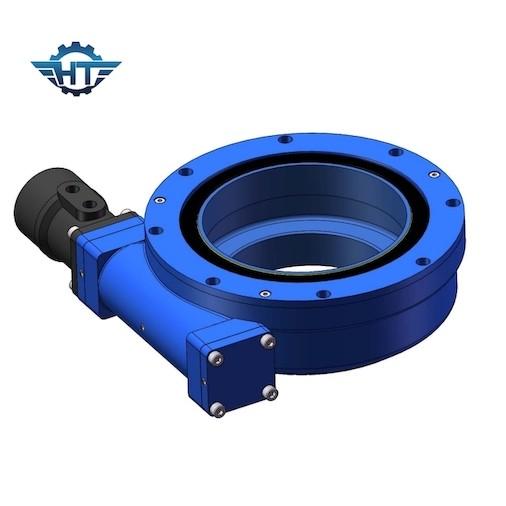

Customized 3 Inch Small Slew Drive With Electric Motor For
Horizontal PV Tracker
Small Slew Drive Description
For slewing drive, there are 10 different sizes available from 1"
to 25" with more than 60 models to meet both regular and precise
tracking requirements in PV, CPV and solar thermal power tracking
fields.
Hangtuo has implement strict quality control system, meanwhile, we
have passed ISO9001-2008 quality system certification.
Technical Date of SE Series Slewing Drives
| Model | Ratio | Rated Output Torque | Tilting Torque | Holding Torque | Axial Load | Radial Load | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | N.m | kN | kN | degree | Yes | kg |
| 3" | 31:1 | 300 | 1500 | 7000 | 30 | 15 | 40% | ≤0.1 | Yes | 9kg |
| 5" | 37:1 | 637.5 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 14kg |
| 7" | 57:1 | 1750 | 10500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 23kg |
| 9" | 61:1 | 4300 | 49900 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 44 kg |
| 12" | 78:1 | 5600 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 51 kg |
| 14" | 85:1 | 6750 | 135000 | 44200 | 680 | 230 | 40% | ≤0.1 | Yes | 62kg |
| 17" | 102:1 | 9460 | 203000 | 53040 | 980 | 390 | 40% | ≤0.1 | Yes | 85kg |
| 21" | 125:1 | 16000 | 271000 | 65000 | 1600 | 640 | 40% | ≤0.1 | Yes | 141kg |
| 25" | 150:1 | 21450 | 346000 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 182kg |
Shipping And Package
Shipping
All available shipping ways could be applied, by courier, air or
sea.
An appointed shipping company or our own forwarders all could be
used in shipment.
Full-way tracking the cargoes for you before the goods arrive.
Working testing equipment to ensure every product can work normally
before out of the factory,
our products are 100% been tested.
Package
The package is different from the size of the slewing drives, we
can package as you like, our package is very tigt, and ensure that
the product won't shake during shipping.
Applications
The slewing drives can be applied in flat single axis solar
tracking system. The flat single-axis tracking system is suitable
for installation in the middle and low latitudes. Its principle is
that according to the position of the sun, the intermittent drive
motor drives the mechanical mechanism, so that the photovoltaic
modules follow the position of the sun, thereby reducing the
incident angle of sunlight and improving the visibility of the
modules to the sun. The absorption rate of radiation greatly
increases the power generation of the system.
