High Accuracy Small Worm Gear Slewing Drives For Outdoor Earth
Station Antenna

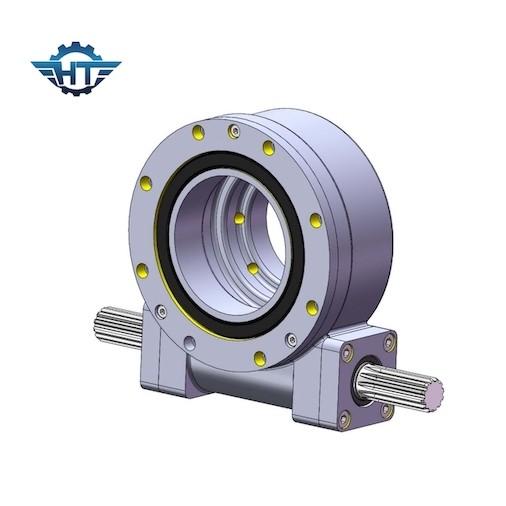

Small Worm Gear Slewing Drives
Slewing ring drive for precision application: the success of our
slewing ring is the result of the precision of our finished slewing
drives by grinding and adjustable backlash design and technology.
Our zero backlash and small backlash series slewing drives'
production is perfectly under control and the matching of the rings
and the rolling elements. To ensure the clients can obtain the
right bearing for this very demanding application.
Performance Parameters of SE series
| SE Model Performance Parameters |
| Model | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (degree) | IP | Working Tep. (℃) | Self- locking | Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Our Advantages
1. Corporate with Hangtuo means direct contact with experienced
technical specialists, good advice and satisfied agreements.
2. Modifications to suit customers’ demands can be executed swiftly
and reliably. No matter you want a different adapter to suit for
the gear motor connection, long shaft, and alternative painting
process or colors. Good documentations like 3D drawings,
professional development and testing of a prototype.
3. 20 years producing experience, strict quality control can be the
industry’s best solution guarantee.
4. China leading supplier for slewing bearings and slewing drives,
the products have through ISO 9001, CE certifiaction
5. Excellence in quality and precision performance.
6. Traceability production, full implementation of control process
to ensure high quality slewing drives.
Applications
A solar tracker using a slewing drive is a mechanical device used
to align photovoltaic modules with the sun or direct sunlight to
photovoltaic cells. Photovoltaic trackers can be divided into two
types: non-concentrating photovoltaic (PV) trackers and
concentrating photovoltaic (CPV) trackers. Each of these two types
of trackers can be subdivided according to their number of tracked
axes, drive architecture and transmission, tracker application,
etc.
