SDE7 Dual Axis Worm Gear Slew Drive Gearbox For Dual Axis Solar
Tracking System

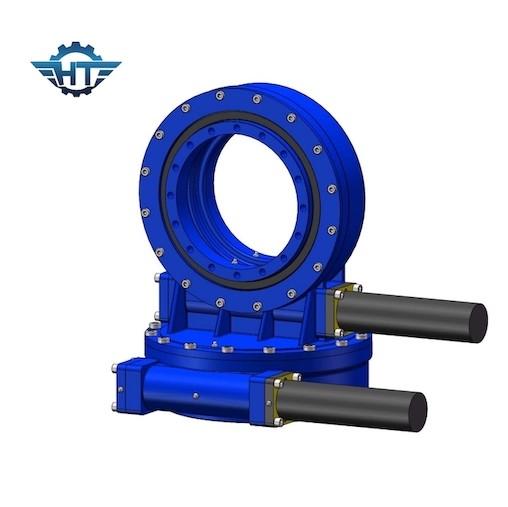

Dual Axis Slewing Drive Description
Dual-axis slewing drive designing with two axis drive at the same
time. It is more tooth contacting and double output torque than SE
Series slewing drive.This product has a long history, process
technology has been very mature now.
SDE Model Slewing Drive Performance Parameters
| SDE Model Performance Parameters |
| Model | Rated Output Torque (N.m) | Tilting Torque (kN.m) | Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (degree) | IP | Working Tep (℃) | Self-locking | Weight (kg) |
| 3" | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5" | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7" | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9" | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12" | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14" | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17" | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21" | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25" | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
Applications
Our dual-axis slewing units generate torque by rotating about two
independently separated axes, enabling stable and high-precision
transmission over a wide range. Applications include solar
trackers, heliostats, concentrated photovoltaics (CPV), and
satellite and radio antennas.
