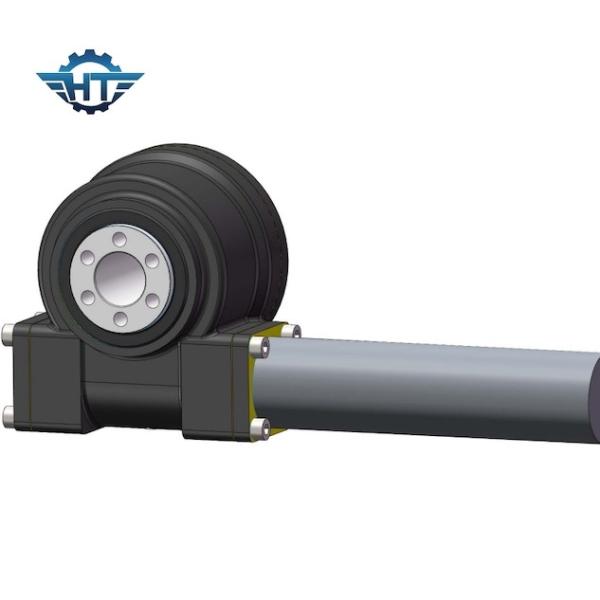

High Precision IP66 Slew Drives With Planetaty Motor For Solar
Powered Tracking System
High Precision Slew Drive Description
We manufacture the most advanced and reliable slewing drives in the
world. Our solutions are underpinned by strong technology and
excellent customer service, as well as global manufacturing and a
closely-knit supply chain.
We help our customers solve their challenges through relentless
innovation, R&D, product testing and validation.
We are a major supplier of slewing drives, a major component of the
tracking photovoltaic market, and our solar tracking drives come
with a 10-year warranty and a 30-year performance guarantee.
We work tirelessly when solving problems. We meet our customers'
application needs in a number of innovative ways, and then validate
the solution. We subject slewing drives to harsh operating
conditions to extend product life by predicting and avoiding
failures.
We have R&D as well as our manufacturing and supporting supply
chain. Our customers can confidently turn to us for our R&D and
application expertise.
Performance Parameters of SE series
| SE Model Performance Parameters |
| Model | Rated Output Torque (N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (degree) | IP | Working Tep. (℃) | Self- locking | Weight (kg) |
| 1" | 400 | 1000 | 1800 | 22 | 12 | 32:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 6 |
| 3" | 600 | 1500 | 3000 | 30 | 16 | 31:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 8 |
| 5" | 800 | 6000 | 9200 | 68 | 27 | 37:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 12 |
| 7" | 2000 | 13500 | 13200 | 132 | 58 | 57:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 21 |
| 9" | 4400 | 45000 | 30800 | 340 | 130 | 61:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 49 |
| 12" | 5800 | 54400 | 40560 | 480 | 190 | 78:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 61 |
| 14" | 6550 | 68000 | 54200 | 680 | 230 | 85:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 63 |
| 17" | 9400 | 135600 | 65040 | 980 | 390 | 102:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 105 |
| 21" | 16000 | 203400 | 81000 | 1600 | 640 | 125:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 149 |
| 25" | 21000 | 271160 | 89000 | 2400 | 950 | 150:1 | 40% | ≤0.1 | 66 | -40～+120 | Yes | 204 |
Advanced Research And Development
1. independent and complete development mechanism
2. 3D modeling software to conduct scientific analysis of load and
production
3. Standard product design process:
3.1 customer technical inquirements
3.2 APQP&PPAP&FEMA analysis
3.3 3D model
3.4 simulation for slewing drive
3.5 production drawing and operation instructions
Applications
A single-axis tracker using a slewing drive has one degree of
freedom is the rotation axis, and there are several different ways
of implementing a single-axis tracker. Including horizontal
single-axis tracker, vertical single-axis tracker, inclined
single-axis tracker; the rotation axis of the horizontal
single-axis tracker is horizontal relative to the ground. The axis
of rotation of a vertical single-axis tracker is vertical relative
to the ground. The tracker goes from east to west during the day.
All single-axis trackers located between horizontal and vertical
are oblique single-axis trackers. The angle of inclination is
generally limited by the need to reduce the wind profile and the
need to reduce the height of the raised end. A polar-aligned
oblique uniaxial tracker is a special oblique uniaxial tracker in
which the angle of inclination is equal to the latitude of the
installation site. This way the axis of rotation of the tracker is
aligned with the axis of rotation of the earth.
