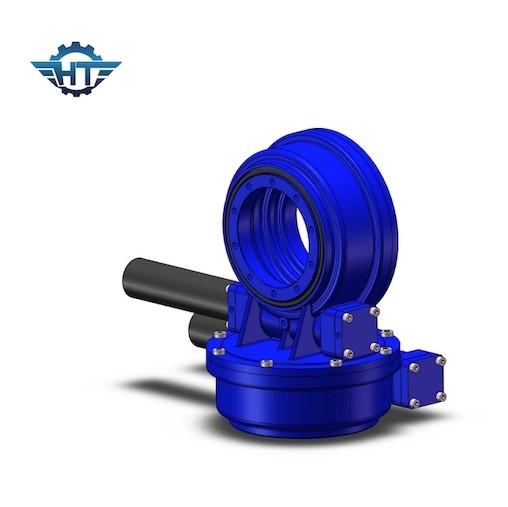

Photovoltaic Solar Tracker Slewing Bearing Drive Tower CSP System

Ask Lasest Price
Brand Name :	HT
Model Number :	SDE5"
Certification :	CE, ISO9001
Price :	USD 280~504 / pc
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000 pcs per month
Delivery Time :	15~45 days

Add to Cart

Product Details
Company Profile

Photovoltaic Solar Tracker Slewing Bearing Drive Tower CSP System

Customized Color Worm Gear Slew Drive With Gear Ratio 57:1 For PV Solar Trackers

Worm Gear Slew Drive Description

The slewing drive is a new type of slewing product, which was often referred to as a slewing bearing in the past. It usually consists of a worm, a slewing bearing, a housing, a motor and other components. Since the core components are slewing bearings, they can bear axial force, radial force and overturning moment at the same time, and have the characteristics of convenient installation, convenient maintenance and higher IP level.

SDE Model Slewing Drive Performance Parameters

SDE Model Performance Parameters
Model	Rated Output Torque (N.m)	Tilting Torque (kN.m)	Holding Torque (kN.m)	Axial Load (kN)	Radial Load (kN)	Ratio	Efficiency	Precision (degree)	IP	Working Tep (℃)	Self-locking	Weight (kg)
3"	600	1.5	5.8	10	15	31:1	40%	≤0.15	66	-40～+80	Yes	25kg
5"	800	6	9.2	16	27	37:1	40%	≤0.15	66	-40～+80	Yes	34kg
7"	2000	7.5	13.2	34	58	57:1	40%	≤0.15	66	-40～+80	Yes	56kg
9"	4300	16	27.2	60	130	61:1	40%	≤0.15	66	-40～+80	Yes	92kg
12"	5800	25	41	77	190	78:1	40%	≤0.15	66	-40～+80	Yes	160kg
14"	6750	48	45	110	230	85:1	40%	≤0.15	66	-40～+80	Yes	224kg
17"	9460	67	54	142	390	102:1	40%	≤0.15	66	-40～+80	Yes	320kg
21"	16000	89	65	337	640	125:1	40%	≤0.15	66	-40～+80	Yes	492kg
25"	21450	112	89	476	950	150:1	40%	≤0.15	66	-40～+80	Yes	705kg

Applicatons

Slewing rotary drive devices are widely used in photovoltaic, concentrated photovoltaic CPV, CSP, including tower CSP system, Fresnel system, trough CSP system, construction applications, including truck cranes, elevators, turntables, port machinery, Modular vehicles, small wind power generation systems and satellite communication communication systems.
