IP66 Envelop Dual Axis Worm Drive With 12vdc Electrical Motor For
Tower Concentrated Solar Power
Description

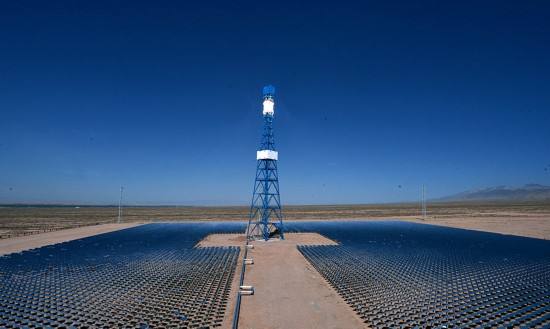

What is Tower CSP
The Heliostat concentrated solar power station, as one of the
mainstream CSP technology routes, tower CSP has received much
attention in recent years. Compared with the mature trough
technology, tower photothermal power generation has higher thermal
efficiency and concentration ratio, lower terrain requirements, but
also has high risks, lack of technical maturity verification, and
complex control systems.
At present, the common tower technology in the world is based on
molten salt as a molten salt tower for transferring heat medium and
a hydrothermal tower with water working medium as a heat transfer
medium, and the molten salt tower has a large capacity. The
advantages of large-scale energy storage are favored.
Slew Drives Applied In Tower CSP
| Product Name | SDE7 Slewing drive with 43Nm 24Vdc gear motors |
| Output Torque | 980 N.m ; 723 ft.lbs |
| Max Output Torque | 1938 N.m; 1429 ft.lbs |
| Tilting Moment Torque | 7000 N.m; 5163 ft.lbs |
| Holding Torque | 13200 N.m ; 9736 ft.lbs |
| Static Axial Rating | 133.20 kN ; 29943 lb |
| Static Radial Rating | 53 kN ; 11977 lb |
| Dynamic Axial Rating | 31.90 kN ; 7171 lb |
| Dynamic Radial Rating | 27.91 kN ; 6274 lb |
| Motor Alternatives | 380V/220V AC Motor ; Stepper Motor ; Brushless Motor |
| Products Style | Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar
Tower |
| Application Feature | Solar Tracking System, Industrial Machiner |
Slewing drives are perfect for situations requiring both
load-holding and rotational torque from the same gearbox. Typical
applications include solar trackers, wind turbines, satellite and
radar dishes, truck cranes, man lifts, utility equipment, hydraulic
equipment attachments, oil tool equipment, tire handlers, digger s,
and automotive lifts.
Performance Table
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg |
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.1 | Yes | 21kg |
| 5" | 37:1 | 650 | 5000 | 16 | 27 | 9200 | 40% | ≤0.1 | Yes | 32kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.1 | Yes | 54kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.1 | Yes | 88kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.1 | Yes | 157 kg |
| 14" | 85:1 | 6750 | 48000 | 110 | 230 | 44200 | 40% | ≤0.1 | Yes | 214kg |
| 17" | 102:1 | 9460 | 67000 | 142 | 390 | 53040 | 40% | ≤0.1 | Yes | 315kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.1 | Yes | 481kg |
| 25" | 150:1 | 21450 | 112000 | 476 | 950 | 89000 | 40% | ≤0.1 | Yes | 682 kg |
