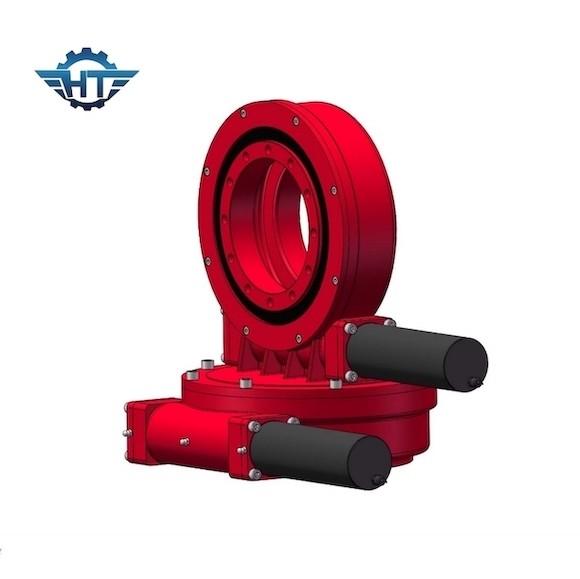

SDE21" High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery

Product Categories

Changzhou Hangtuo Mechanical Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Construction Machinery

Ask Lasest Price
Brand Name :	HangTuo
Model Number :	SDE 21"
Certification :	CE, ISO9001
Price :	USD 280~504 / pc
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000 pcs per month
Delivery Time :	15~45 days

Add to Cart

Product Details
Company Profile

SDE21" High Torque Dual Axis Slew Drive For Satellite / Robot / Construction Machinery

Satellite Dual Axis Slew Drive Description

Dual-axis slewing drive designing with two axis drive at the same time. It is more tooth contacting and double output torque than SE Series slewing drive.This product has a long history, process technology has been very mature now.

Features

high quality
competitive price
reliable reputation

Gear Motor Options

Electric and planetary gearboxes can be designed according to customer's requirement.Slewing drive has the advantage for saving space in facilities,max load capacity in a compact design,extensive lifespan, reduced maintenance costs.

SDE Model Slewing Drive Performance Parameters

SDE Model Performance Parameters
Model	Rated Output Torque (N.m)	Tilting Torque (kN.m)	Holding Torque (kN.m)	Axial Load (kN)	Radial Load (kN)	Ratio	Efficiency	Precision (degree)	IP	Working Tep (℃)	Self-locking	Weight (kg)
3"	600	1.5	5.8	10	15	31:1	40%	≤0.15	66	-40～+80	Yes	25kg
5"	800	6	9.2	16	27	37:1	40%	≤0.15	66	-40～+80	Yes	34kg
7"	2000	7.5	13.2	34	58	57:1	40%	≤0.15	66	-40～+80	Yes	56kg
9"	4300	16	27.2	60	130	61:1	40%	≤0.15	66	-40～+80	Yes	92kg
12"	5800	25	41	77	190	78:1	40%	≤0.15	66	-40～+80	Yes	160kg
14"	6750	48	45	110	230	85:1	40%	≤0.15	66	-40～+80	Yes	224kg
17"	9460	67	54	142	390	102:1	40%	≤0.15	66	-40～+80	Yes	320kg
21"	16000	89	65	337	640	125:1	40%	≤0.15	66	-40～+80	Yes	492kg
25"	21450	112	89	476	950	150:1	40%	≤0.15	66	-40～+80	Yes	705kg

Applications

Dual axis slewing drive can be applied in solar tracking system, solar dish, PV, CPV, CSP, wind turbine and satellite dish.
