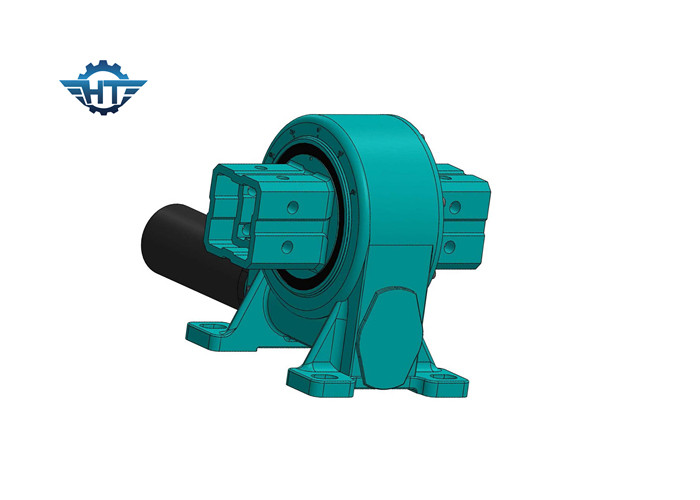

Vertical Worm Gear Slew Drive For High Accuracy Small Backlash
Solar Tracking System
Vertical Worm Gear Slew Drive Description
Slewing drives are the most cost-effective and optimum solutions
for single axis and dual axis solar tracking system. They are
designed, tested, and guaranteed for accuracy and performance for a
30-year field life time.
Compared with fixed solar tracking systems which could produce the
highest levels of energy only when the sun is at the optimum angle
to the panel, the solar tracking system could be directly towards
the sun from sunrise to sunset.
Parameters of VE Model Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Remark: For more detailed dimensions and parameters, please refer
to our sales drawings.
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic
motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard
color is RAL 9006.
Packaging and Shipping
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
Shipping Term: by express; by air; by land; by sea.
For samples, since the slew drive is with small dimension but heavy
weight weight, it's not cost effective shipping by sea while the
express shipping the cost-effective way, our logistitic staffs will
asked TNT, DHL, UPS, FEDEX, to compare the express price in order
to find the most cost effective way.
If in bulk order in the future, we recommend ship by sea.
Q&A
1. How can i choose?
Please specify the wheel diameter size, width, voltage, power and
no-load speed of the required motors.
2. Could I take samples to test quality and market in advance?
Sure, welcome to take samples to test our quality and service.
3. What's the total cost for samples?
Total sample cost= sample cost + freight
We will give you the best shipping cost after you choose the
suitable gear motors
4. How do you ship samples?
Considering sample quantity is not big, we support ship samples by
EMS, TNT or Fedex
5. What's your minimum order quantity?
10 sets after samples confirmed
6. What's your delivery time?
For standard samples: within 7days; for batch orders: within 25
days.
