SDE Series Dual - Axis Small Slew Drive With Different Types Of Motors

Ask Lasest Price
Brand Name :	HangTuo
Model Number :	SDE7"
Certification :	CE, ISO9001
Price :	USD 398~456/ pc
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	2000 pcs per month
Delivery Time :	15~45 days

Add to Cart

Product Details
Company Profile

SDE Series Dual - Axis Small Slew Drive With Different Types Of Motors

SDE Series Dual Axis Small Slew Drive With Different Types Of Motors For Tower Solar Thermal Power

Description

History of Tower Photothermal

The design concept of the tower solar thermal power generation system was proposed by the former Soviet Union in the 1950s. In 1950, the former Soviet Union designed the world's first small tower-type solar thermal power station, and carried out extensive and fundamental exploration and research on solar thermal power generation technology. According to incomplete statistics, there were more than 20 megawatt-scale solar thermal power experimental power stations built in the world from 1981 to 1991, the main form of which is the tower power station, with a maximum power generation of 80 MW. In July 2013, China's Qinghai Zhongkong Delingha 50MW tower solar thermal power station-Phase I-10MW project was successfully integrated into Qinghai Power Grid, indicating that China's self-developed solar thermal power generation technology has taken solid steps toward commercial operation.

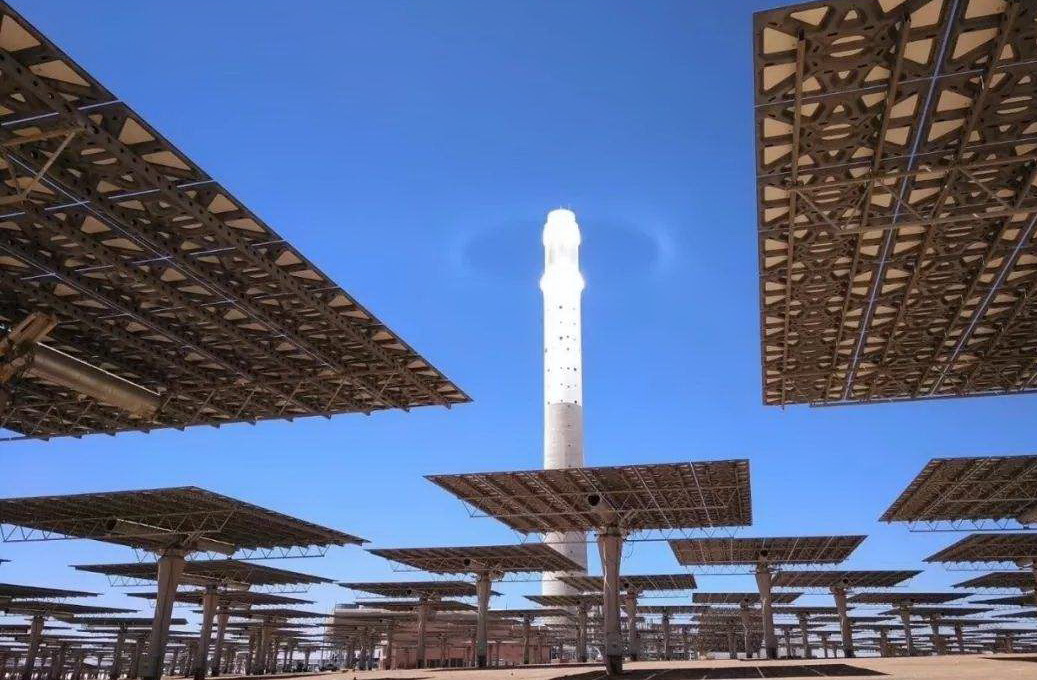

Slew Drives Applied In Tower CSP

Model	Ratio	Rated Output Torque	Tilting Torque	Axial Load	Radial Load	Holding Torque	Efficiency	Precision	Self-locking	Weight
Model	Ratio	N.m	N.m	kN	kN	N.m	Efficiency	degree	Yes	kg
3"	31:1	300	1500	3.6	15	7000	40%	≤0.05	Yes	21kg
5"	37:1	650	5000	16	27	9200	40%	≤0.05	Yes	32kg
7"	57:1	1750	7000	34	58	13200	40%	≤0.05	Yes	54kg
9"	61:1	4300	16000	60	130	27200	40%	≤0.05	Yes	88kg
12"	78:1	5600	25000	77	190	40560	40%	≤0.05	Yes	157kg
21"	125:1	16000	89000	337	640	65000	40%	≤0.05	Yes	481kg

Features

1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function

Applicatons

Customized Services

1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
