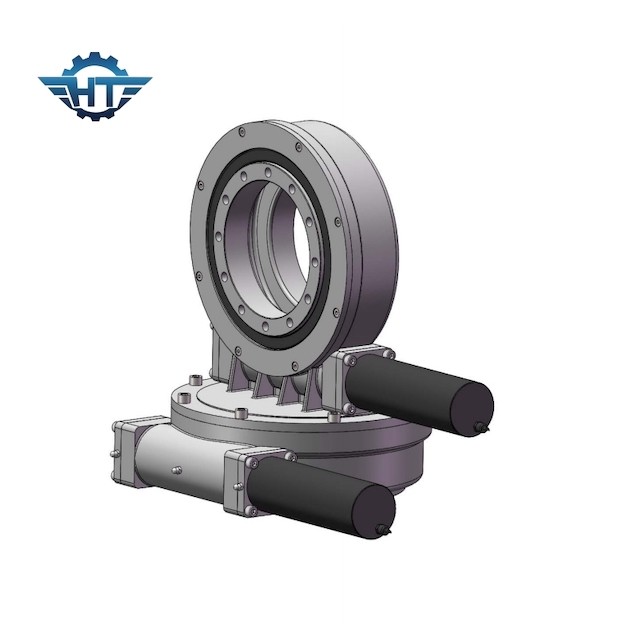

Small Dual Axis Slew Gear Enclosed Housing For Sun Tracking Panel Project

Slew Gear​ Description

Hangtuo’s slewing drives provide a large gear ratio in a single stage of gearing, optimized for weight versus performance. The wroms and gears are assembled into a low-profile, self-retaining, and ready-to-install housing, enabling the product to react to all axial and radial forces, and resulting tilting moments created in the most challenging applications. These highly-adaptable products also feature strong shock resistance, long-life performance, smooth rotation, bearing protection, and sealed drive options. All of the technical benefits, combined with industry-leading quality standards, make Hangtuo products the ideal candidates for performance-critical, heavy-duty applications.

SDE Model Slewing Drive Performance Parameters

The Slew Drive Working Principle

The worm is driven by the motor, which drives the slewing drive to rotate and output the torque through the flange fixed in the housing. Slewing drive has reverse self-locking because of worm gear drive with reverse self-locking characteristics.

Key features

1. stable

2. high precision

3. excellent performance

Changzhou Hangtuo Mechanical Co., Ltd is a high-tech enterprise integrated with research and development, production and sales. We focus on the research and development of slew bearings, high-precision slew drives, and planetary gear motors. We are committed to provide customers with reliable, diversified, high-quality and customized solutions.

Our products are widely used in solar photovoltaic, photothermal, satellite, robot, engineering machinery etc. We will always devote to continuous product improvement and the implementation of strict quality control standards, and will continue to strive to meet the growing needs of customers.
